MULTIHOG CV

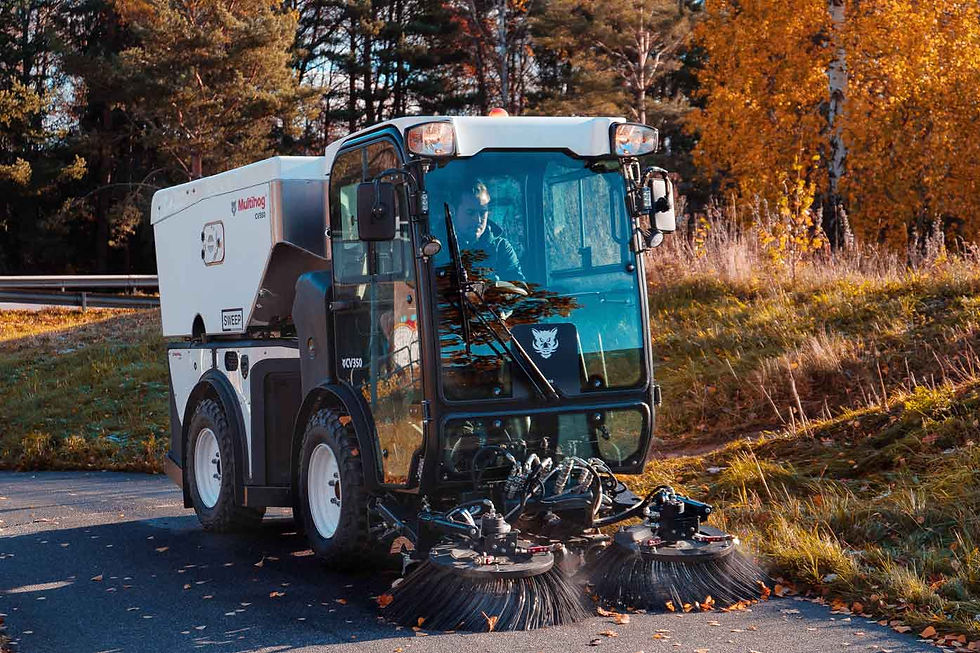

Multipurpose Street Sweeper

More than just a street sweeper

CV Multipurpose Street Sweeper
CV Multipurpose Street Sweeper

Each brush is independently controlled via a miniature joystick; a third brush may be added if required.

press to zoom
CV Multipurpose Street Sweeper
CV Multipurpose Street Sweeper

Full independent spring damper suspension on each wheel creates a superbly comfortable working environment.

press to zoom
CV Multipurpose Street Sweeper
CV Multipurpose Street Sweeper

A 200 litre water tank for optimal dust suppression.

press to zoom
CV Multipurpose Street Sweeper
CV Multipurpose Street Sweeper

Each brush is independently controlled via a miniature joystick; a third brush may be added if required.

press to zoom
1/3

Features

Compact, multi-purpose sweeper with capacity to work 365 days per year, making the most of tight equipment budgets

Dedicated all-terrain vehicle with he option to change front brushers to other attachments (snow plough/mower/etc.).

Boasts one of the cleanest engines on the market with environmentally friendly stage V emissions.

Available in either 3500kg or 4000kg GVW models, both designed with heavy focus on operator comfort and safety.

All sweeper functions are controlled from a floating multifunctional armrest, which is ergonomic and moves with the operator.

Each brush is independently controlled via miniature joystick; a third brush may be added if required.

Incredibly simple operation - switch from drive mode to sweep mode and back again at the push of just one button.

Built-in heavy-duty cooling for working in hot climates and features a 200 litre water tank for optimal dust suppression.

Full independent spring and damper suspension on each wheel creates a superbly comfortable working environment.

Specifications

Length

3800-4500mm

Width

1200-1600mm

Height

1970-2100mm

Engine

75 HP (55 KW)

Wheel base

1750mm

Weight (tare)

2000-2500kg

Weight (gross)

3500-4000kg

Max axle capacity (front)

2000kg (tyre dependent)

Max axle capacity (rear)

2500kg (tyre dependent)

Outer turning radius

2550-2740mm

Emissions

Tier 4 final/Stage V

Diesel tank capacity

60 Litres
